BF Specification of CVE-2014-0160 — Heartbleed Heap Buffer Over-Read in OpenSSL v1.0.1 before v1.0.1g
-0.png)
Missing verification of 'payload' towards an upper limit leads to the use of an inconsistent size for an object, allowing a pointer to reposition over its bounds, which, when used in 'memcpy()' leads to a heap buffer over-read. If exploited, this can lead to exposure of sensitive information (IEX) – confidentiality loss.

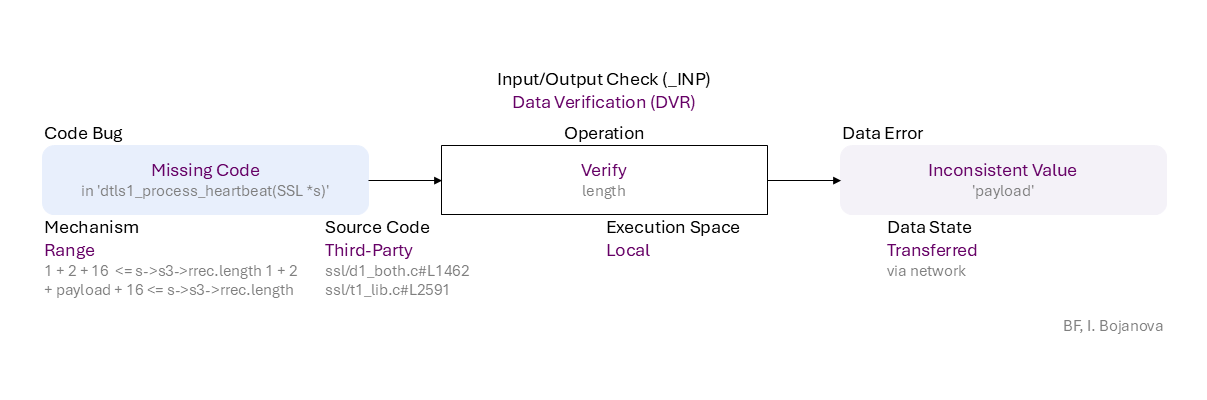

Missing Code (in 'dtls1_process_heartbeat(SSL *s)') to Verify (length) of Transferred data (via network) using Range mechanism (1 + 2 + 16 <= s->s3->rrec.length 1 + 2 + payload + 16 <= s->s3->rrec.length) in Third-Party source code (ssl/d1_both.c#L1462 ssl/t1_lib.c#L2591) in Local execution space leads to Inconsistent Value ('payload') error, which propagates to
Wrong Size (in 'memcpy(bp, pl, payload)') to Reposition (pointer) on Heap with Used size (s→s3→rrec.data[0]) using Sequential mechanism in Third-Party source code (ssl/d1_both.c#L1487 ssl/t1_lib.c#L2620) in Userland execution space that results in Overbound Pointer ('pl') error, which propagates to
Overbound Pointer (in 'memcpy(bp, pl, payload)') to Read (object) Huge address span (up to 64kb per exploit) on Heap with Used size using Sequential mechanism in Third-Party source code (ssl/d1_both.c#L1487 ssl/t1_lib.c#L2620) in Userland execution space that results in Buffer Over-Read ('bp') final error, which can be exploited toward
Information Exposure (IEX) (confidentiality loss) security failure.
|
| Class | Definition |
| DVR | Data Verification (DVR) class – Data are verified (i.e., semantics check) or corrected (i.e., assign or remove) improperly. |
| MAD | Memory Addressing (MAD) class – The pointer to an object is initialized, dereferenced, repositioned, or reassigned to an improper memory address. |
| MUS | Memory Use (MUS) class – An object is initialized, read, written, or cleared improperly. |
| Operation | Definition |
| Verify | Verify operation – Check data semantics (e.g., proper value/meaning) in order to accept (and possibly correct) or reject it. |
| Reposition | Reposition operation – Change the pointer to another position inside its object. |
| Read | Read operation – Retrieve the data value of an object from memory. |
| Cause/Consequence | Definition |
| Code Bug | Code Bug type – An error in the implementation of an operation – proper operands over an improper operation. It is the roor cause of a security vulnerability. Must be fixed to resolve the vulnerability. |
| Missing Code | Missing Code bug - The operation is misplaced entirely absent. |
| Data Error/Fault | Data error (or fault) type – The data of an object has harmed semantics or inconsistent or wrong value. |
| Inconsistent Value | Inconsistent Value error (or fault) – The data value does not correspond to related data value (e.g., inconstancy between the value of a size variable and the actual buffer size). |
| Wrong Size | Wrong Size error (or fault) – The value used as size or length (i.e., the number of elements) does not match the object's memory size or length (e.g., to limit a pointer reposition or index increment/decrement in a repetition statement). |
| Address Error/Fault | Address error (or fault) type – The address of an object is wrong. |
| Overbound Pointer | Overbound Pointer error (or fault) – Holds an address that is above the upper boundary of its object. |
| Memory Corruption/Disclosure Final Error | Memory Corruption/Disclosure final error/exploit vector type – An exploitable or undefined system behavior caused by memory addressing, allocation, use, or deallocation bugs. |
| Buffer Over-Read | Buffer Over-Read final error – Read data above the upper bound of an object. |
| Operation Attribute | Definition |
| Mechanism | Mechanism operation attribute type – Shows how the operation with a bug or faulty operand is performed. |
| Range | Range operation attribute – The operation checks data are within a (min, max) interval. |
| Sequential | Sequential operation attribute – The operation is via iterating over the object elements. |
| Source Code | Source Code operation attribute type – Shows where the code of the operation with a bug or faulty operand resides within the software, firmware, or hardware. |
| Third-Party | Third-Party operation attribute – The operation code is in a third-party source. |
| Execution Space | Execution Space operation attribute type – Shows where the operation with a bug or faulty operand is executed and the privilege level at which it runs. |
| Local | Local operation attribute – The bugged code runs in an environment with access control policy with limited (local user) permission. |
| Userland | Userland operation attribute – The bugged code runs in an environment with privilege levels, but in unprivileged mode (e.g., ring 3 in x86 architecture). |
| Operand Attribute | Definition |
| Data State | Data State operand attribute type – Shows where the data comes from. |
| Transferred | Transferred operand attribute – Data are from another device via a network (e.g., connecting analog device or another computer). |
| Address State | Address State operand attribute type – Shows where the address is (i.e., its location) in the memory layout. |
| Heap | The object is a dynamically allocated data structure (e.g., via malloc() or new). |
| Size Kind | Size Kind operand attribute type – Shows what is used as the size or length (i.e., the number of elements) of an object - e.g., as the limit for traversal over the elements. |
| Used | Used operand attribute – A supplied value to be used as the size or length (i.e., the number of elements) of an object. |
| Address Kind | Address Kind operand attribute type - Shows how much memory is accessed (i.e., the span) outside of a bound of an object. |
| Huge | More than 1KB of memory is accessed. |
| Failure | Definition |
| IEX | Information Exposure (IEX) – Inadvertent disclosure of information that leads to confidentiality loss. |
